G-WALK

Wearable inertial sensor for motion analysis
Discover

Simple, fast and accurate measurement of any movement

G-WALK introduces a new approach to motion analysis: a special wireless sensor applied to the patient allows the assessment of their walking, running and jumping performance, and to conduct clinical tests such as the “Timed Up and Go” and “6-Minute Walk Test”.

These assessments, essential in the context of rehabilitation, help physicians and specialists evaluate the patient’s condition and quantify the efficacy of rehabilitation treatments or therapies.

G-WALK provides all the essential data for the clinical analysis of a patient in just a few seconds. The six included tests can be easily conducted and the results immediately compared with the normal ranges. The integrated protocols offer the possibility to perform complete and in-depth analyses.

Technical highlights

integrated inertial platforms

4

Autonomy

8h

Weight

37g

Why choose it

A wearable motion analysis laboratory

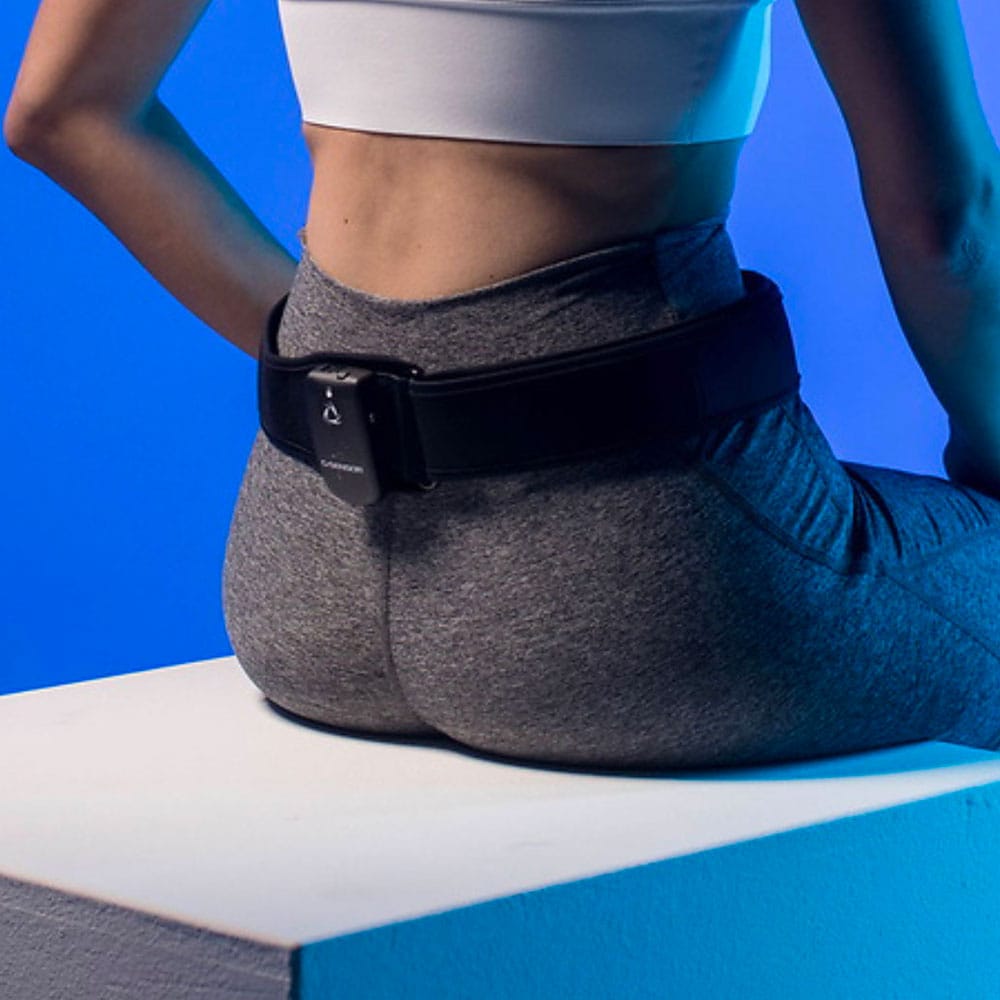

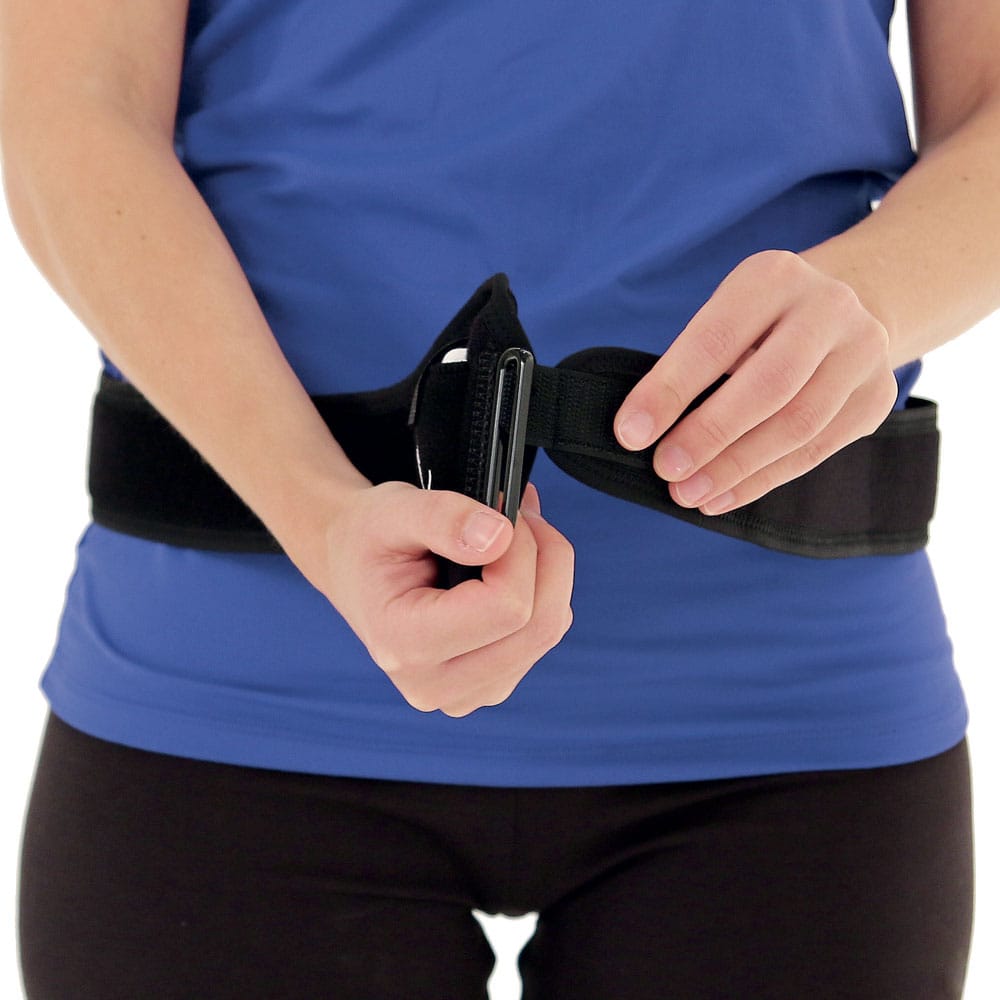

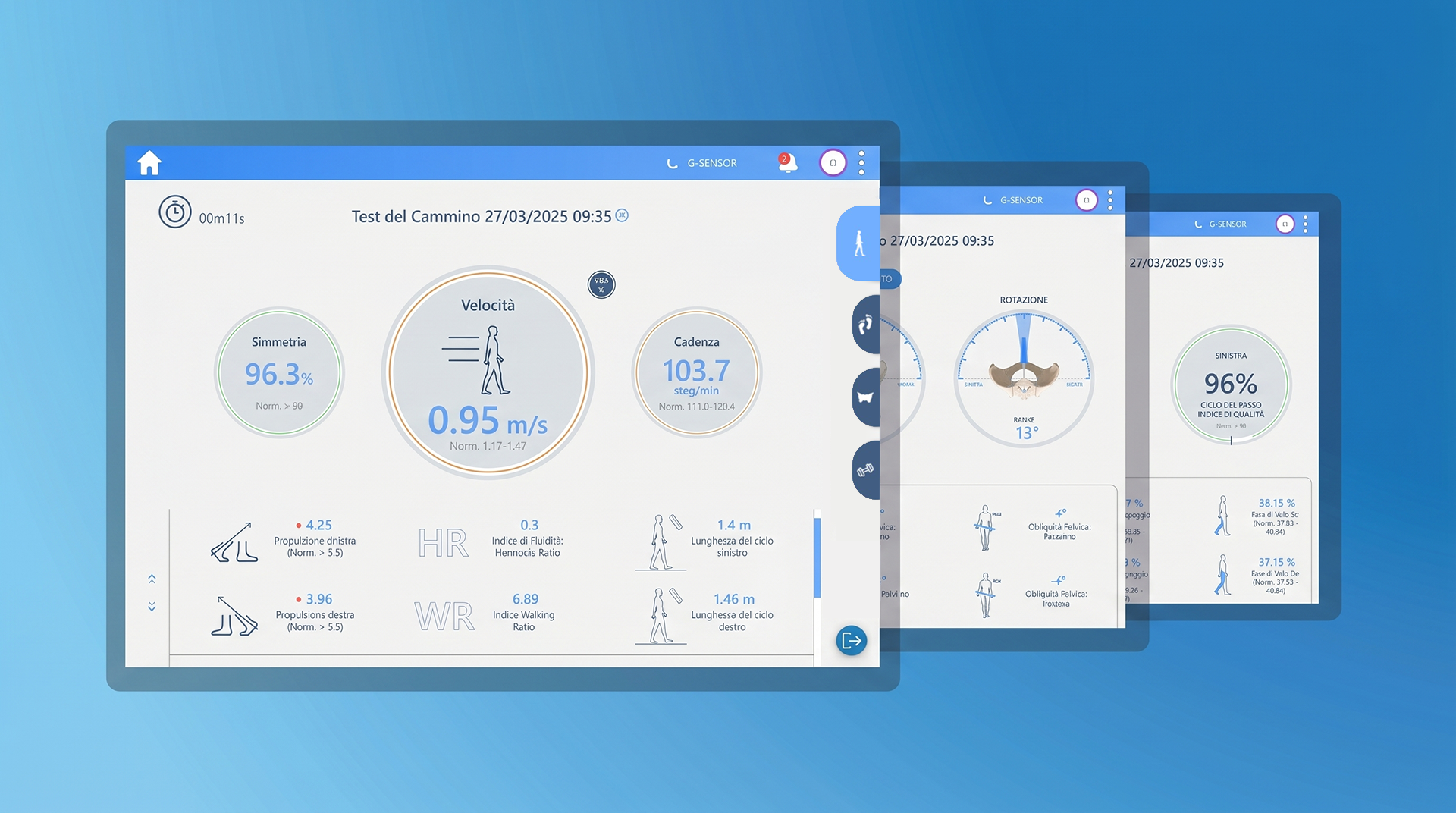

G-WALK is worn by the patient thanks to a special belt. The patient is free to walk, run and jump without any obstructions. The sensor transmits the data via Bluetooth to the connected computer; at the end of the analysis, an automatic report is displayed with the parameters calculated during the test.

Included Protocols
Data sheet

Timed Up and Go
Assessment of functional mobility and the risk of falling.

Six minutes walking test
Measure of functional status or fitness in patients of all ages.

Walk+
Quantitative analysis of walking performance.

Turn Test
Assessment of evolution of movement alterations due to neuro-degenerative diseases.

Run
Monitoring of sports performance and assessment of level of post-injury recovery.

Jumps
Monitoring of sports performance.

Dimensions 70x40x18mm
Weight 37gr
Inertial Platforms 4 – Sensor Fusion technology
Inertial platform components Triaxial Accelerometer 16bit/axes with multiple sensitivity: (±2, ±4, ±8, ±16 g)
Triaxial Gyroscope 16bit/axes with multiple sensitivity: (±250, ±500, ±1000, ±2000 °/s)
Triaxial Magnetometer, 13bit: (±1200 uT)
Battery rechargeable via USB, 8 hours of autonomy
Connectivity Bluetooth® 3.0, class 1, range up to 60 m LOS
Frequency Accelerometer: from 4 to 1000 Hz
Gyroscope: from 4 to 8000 Hz
Magnetometer: up to 100 Hz
Sensor Fusion: 200 Hz
Working Real-time/batch
Memory Internal Flash form 256MB (in Sensor Fusion mode up to 8h of continuous data recording)
Status LED ON-OFF/charge
