SMART-DX EVO

Highest precision motion capture camera
Discover

Distributed Intelligence system with maximum accuracy, resolution and frame rate combined with exceptional versatility

SMART-DX EVO is an extremely versatile product line that is well able to meet all analysis laboratory demands, both in routine use, typical of the clinical field, and in experimental use under the scope of sport and research for the analysis of complex movements that require large spaces for execution and multiple simultaneous body segmental assessments.

SMART-DX EVO represents an evolutionary leap in the development of multifactorial motion analysis, now made more accurate, integrated, quicker and more productive.

SMART-DX EVOs are distributed intelligence systems: the heart of the system are the revolutionary evolution digital cameras. These concentrates of technology are compact processing systems.

They integrate the infrared camera with a digitalisation and image processing system and accessories for interfacing with the outside world (communication ports, digital inputs / outputs, video output), wireless Bluetooth and Wi-Fi connections (other Bluetooth sensors and 3D cameras).

Technical highlights

Accuracy

<100μm

Digital cameras

Up to 256

Resolution

Up to 26 MP

Why choose it

Simplified laboratory set-up

Simplified laboratory set-up

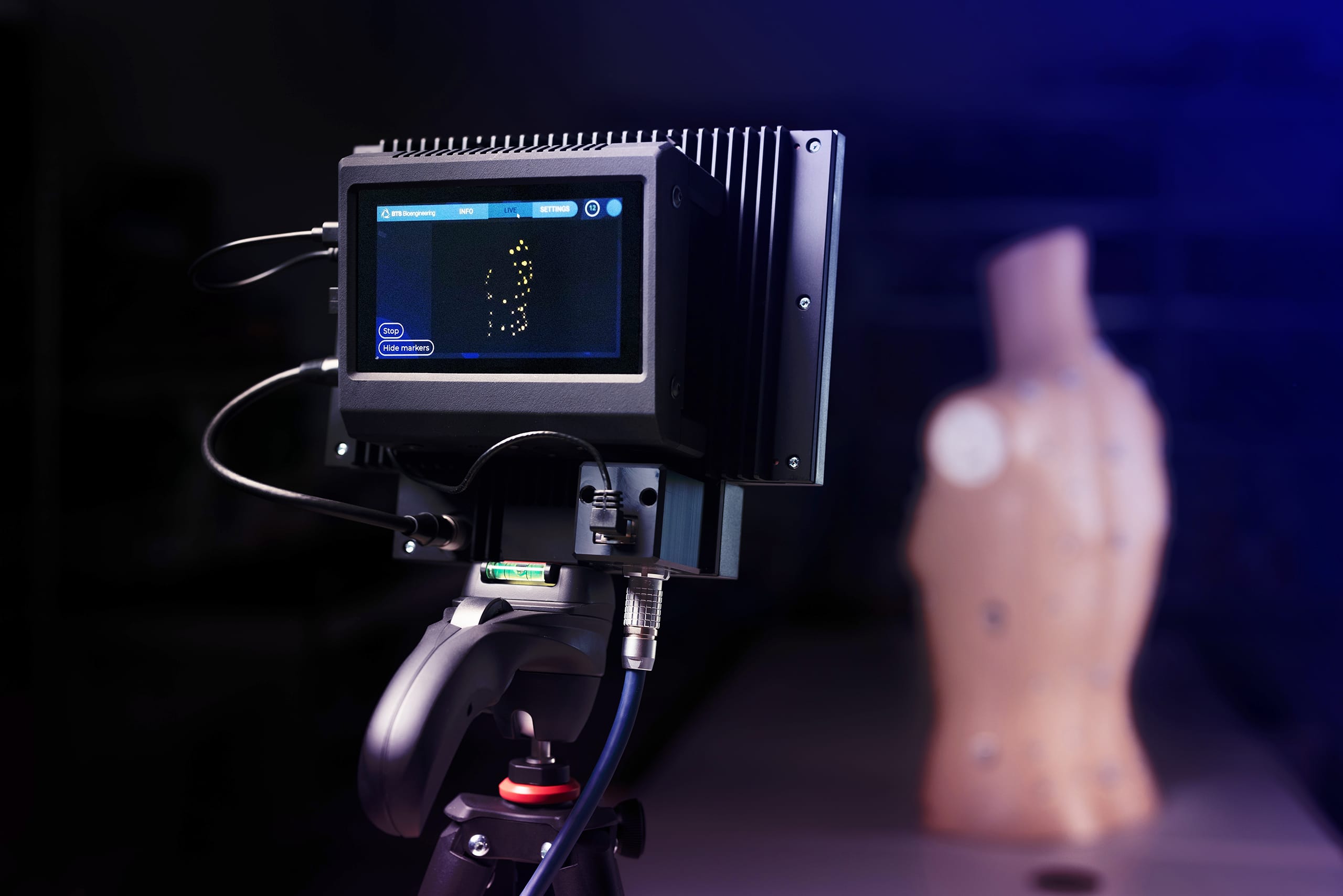

The touch display on the back of the cameras facilitates the laboratory set-up, making focus and pointing operations easier. The system also detects changes in the position of the cameras thanks to the integrated gyroscope, providing a warning through the software regarding the need for recalibration.
Multivolume calibration

Multivolume calibration

Thanks to multivolume calibration, the work area can be a combination of different and not necessarily adjacent volumes. This means the system can be used even in the presence of obstacles inside the room.
Wireless connection

Wireless connection

The cameras are equipped with Bluetooth and Wi-Fi connections to directly communicate with other devices and with the other SMART-DX EVOs.
Versatile system

Versatile system

The different SMART-DX EVO models can be combined to satisfy all specific configuration needs.
Total integration

Total integration

SMART-DX EVO is natively integrated with all devices comprising the motion analysis laboratory: force plates, surface electromyography device, inertial sensor and video cameras.
Validated protocols

Validated protocols

The analysis protocols are validated by the international scientific community. We offer doctors, researchers and sports trainers valuable quantitative information and instant comparison with normal ranges.

Integration and synchronization

SMART DX EVO integrates, synchronizes and manages all the information coming from electromyography devices, sensorized platforms and BTS cameras, in real time. Is also available the integration and synchronization of signals acquired from other devices.
General characteristics
Technical data
  • Accuracy <0.1mm
  • Integration of an unlimited number of cameras
  • Processing module with integrated touch screen
  • Automatic identification of markers
  • Rapid calibration of multiple volumes of different sizes
  • No loss of precision even in critical lighting conditions
  • Native integration with electromyography devices, inertial sensors, force platforms, video cameras.
  • Integration with third-party systems
  • Software for clinical assessment and performance analysis
  • Object-oriented software for the development of customised protocols
  • Development tools
BTS SMART-DX EVO2  BTS SMART-DX EVO5  BTS SMART-DX EVO9  BTS SMART-DX EVO26
Infrared digital cameras Up to 256 TVC Up tp 256 TVC Up to 256 TVC Up to 256 TVC
Sensor Resolution 2,3Mpixel 5,1Mpixel 9Mpixel 26Mpixel
Acquisition frequency at maximum resolution 200fps 100fps 300fps 150fps
Accuracy/Volume <0,1mm on a volume 4x3x3m <0,1mm on a volume 4x3x3m <0,1mm on a volume 6x6x3m <0,1mm on a volume 6x6x3m
Preprocessing On Camera Microprocessor On Camera Microprocessor On Camera Microprocessor On Camera Microprocessor
HMI User Interface Compute Module with Touch panel 5” 1280 x 720 Compute Module with Touch panel 5” 1280 x 720 Compute Module with Touch panel 5” 1280 x 720 Compute Module with Touch panel 5” 1280 x 720
Data Transmission Gigabit Ethernet / WiFi / Bluetooth Gigabit Ethernet / WiFi / Bluetooth Gigabit Ethernet / WiFi / Bluetooth Gigabit Ethernet / Wifi / Bluetooth

Request information on SMART DX EVO
