PODIUM

Biomechanical evaluation system
Discover

Measure and visualize 3D force vector and angles in real-time for assessing performance and reduce risk of injuries

Already trusts us

What it is about

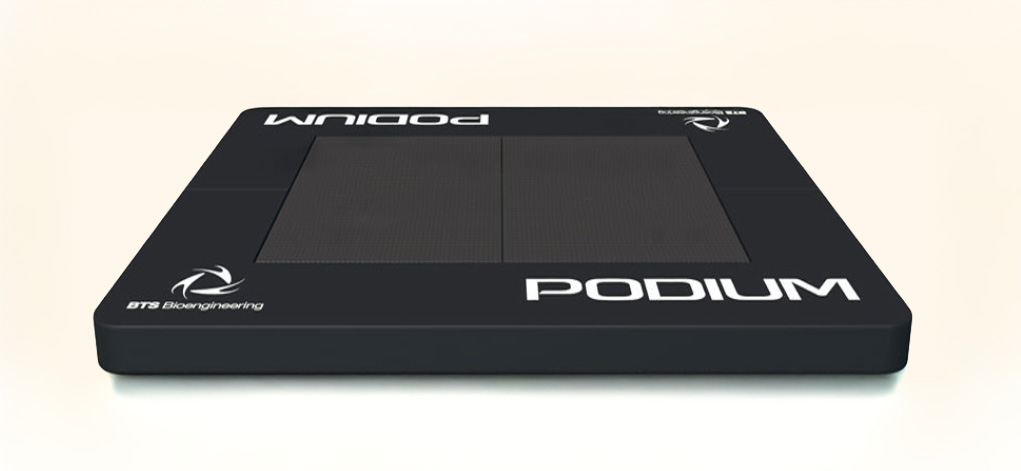

Hardware

Hardware

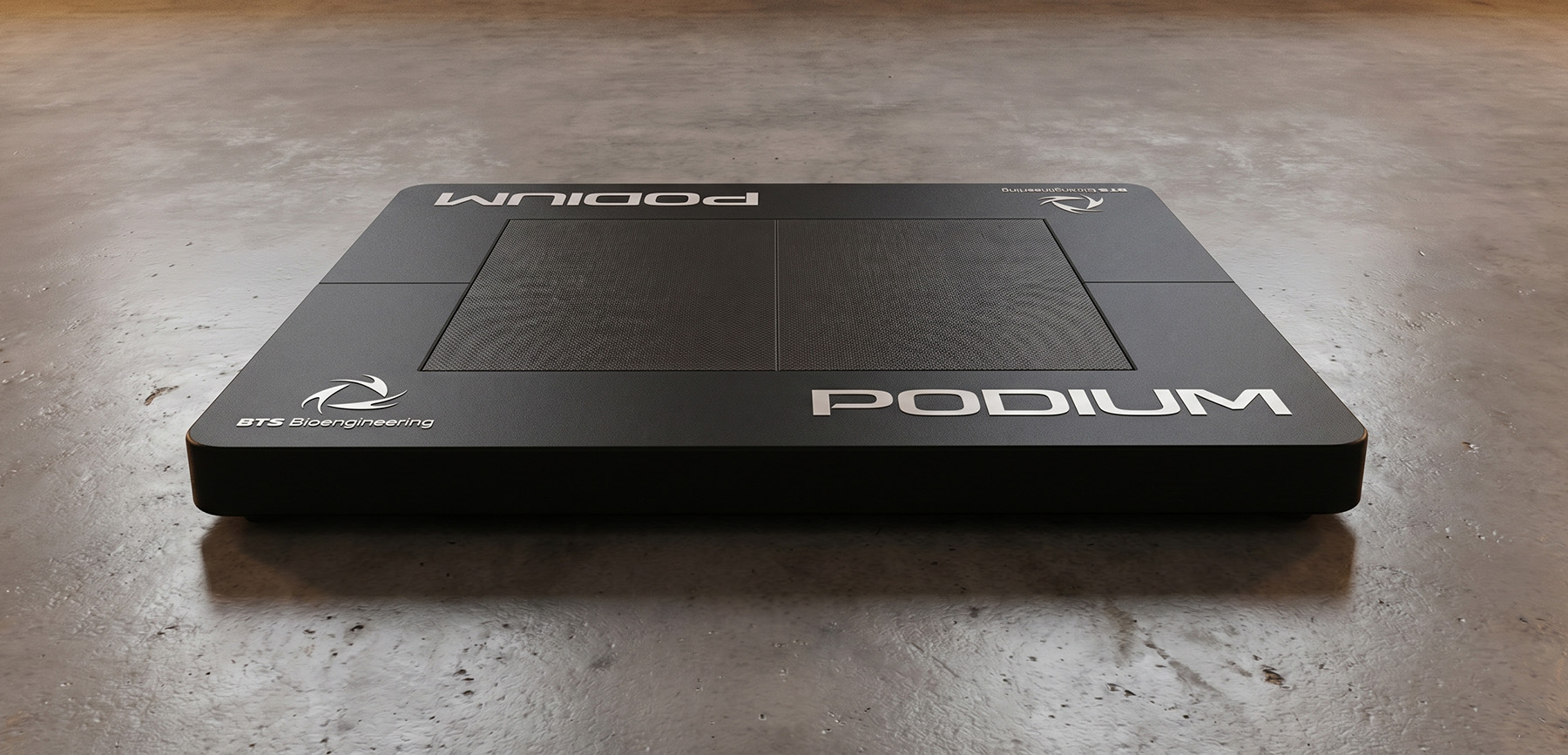

The system consists of 2 P-6000 triaxial force plates and 2 PTZ color cameras.
The P-6000 force plates record the 3 components of the ground reaction force, the coordinates of the Centre of Pressure (COP) and the torque. The software returns in real time the image taken by the cameras with the superimposition of the force vectors and joint angles.

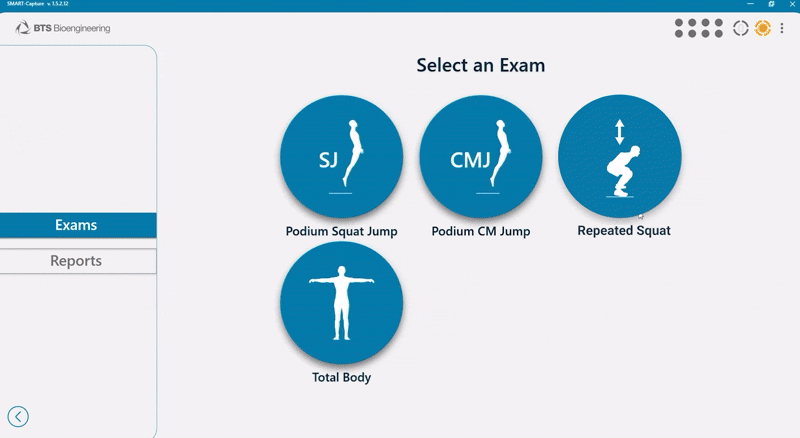

Software

Software

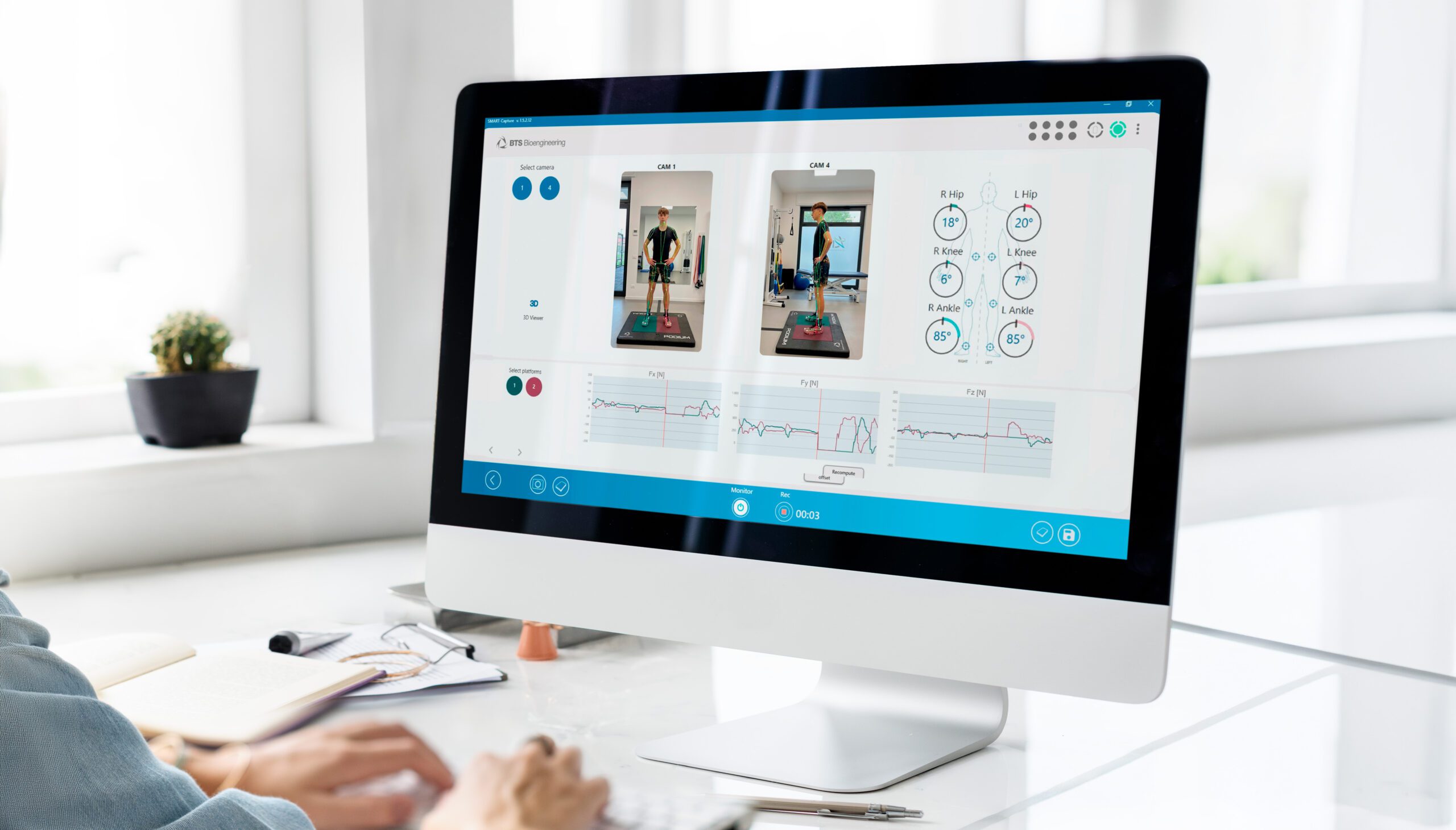

EVO-Capture is a comprehensive software that controls all BTS family devices in the lab ensuring a perfect synchronization. Developed with a focus on ease of use, this design ensures a seamless experience for users of all backgrounds. It allows for multifactorial analysis of acquired biomechanical data provide a wide library of analysis protocols each complete of automatic and easy-to-read report.

Biofeedback

Biofeedback

Thanks to the augmented reality, PODIUM makes the force vector recorded by the platforms visible in real-time. This allows a visual and immediate assessment of the force exerted during the athlete’s contact with the ground in terms of intensity and direction, checking for any overexertion of the joint centres during the phases of the movement analysed. Thanks to this realtime video feedback the athlete can understand how their performance changes in relation to posture, power and movement expressed.

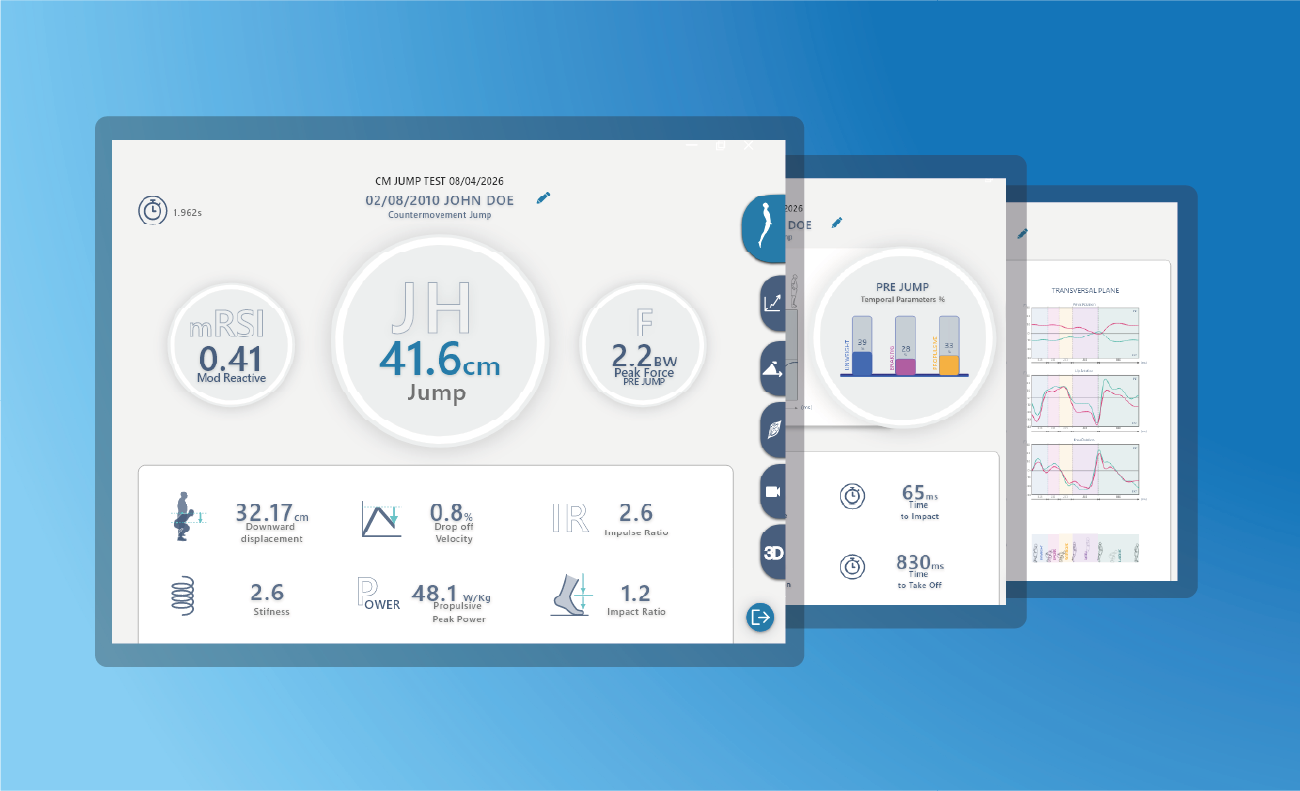

Analysis protocols

Analysis protocols

PODIUM is equipped with a library of analysis protocols that allow to evaluate the symmetry and strength of the athlete in static and dynamic conditions in a few minutes. Each protocol provides an easy-to-read report containing graphs and space-time parameters, as well as the distribution of forces during specific motor tasks.

Highlights and plus

3D Force vector
3D Force vector
Real-time joint angle detection
Real-time joint angle detection
AI algorithms
AI algorithms
Validated protocols
Validated protocols
Biofeedback
Biofeedback
Easy-to-read report

Included tests
Components

Posture and balance,
Walk in place,
Squat,
Walk and Run,
Jumps (Countermovement Jump, Squat Jump, Drop Jump, Hop test…)
Change of Direction,
IMTP test,
Sport-Specific (Baseball, Golf…)

    Standard components

  • 2 P-6000 triaxial force platforms

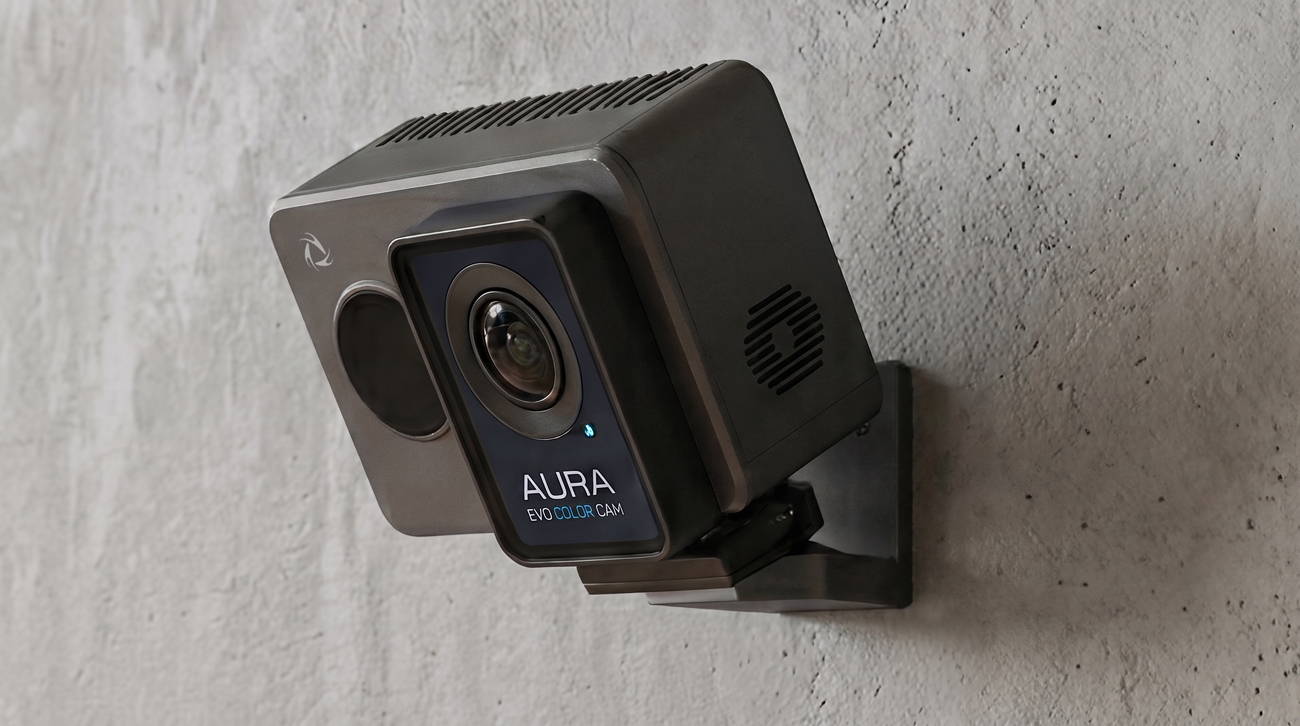

  • up to 4 PTZ Color camera
  • BTS BRAIN – SMART
  • BTS NET – 4 INPUT
  • Evo Capture software

    Add-on

  • Wooden frame
  • 55″ LCD Monitor

Technological support for motor functions assessment

The system consists of 2 P-6000 triaxial force plates and 2 PTZ color cameras.

The P-6000 force plates measure the 3 components of the ground reaction force, the coordinates of the Centre of Pressure (COP) and the torque. The software processes these inputs and provides real-time images captured by the cameras, with superimposed force vectors and joint angles.

Using augmented reality, PODIUM makes the force vectors recorded by the platforms visible in real-time.
This feature enables an immediate visual assessment of the force exerted during the athlete’s ground contact, detailing the intensity and direction.
It also helps in identifying any overexertion of the joint centers during movement phases.

Another feature concerns the analysis of the angles of the main joints in real time, allowing a complete 3D kinematic analysis through the software.

This setup allows athletes to understand how their performance varies with changes in posture, power, and movement.

Why choose our system

Ease of use

Ease of use

The system does not require specific skills. Evaluation protocols guarantee an intuitive report comparing parameters with normality values and showing the potential problem. PODIUM can be used in total freedom without any athlete’s preparation, ensuring high speed in performing tests.
Static and dynamic measurements

Static and dynamic measurements

PODIUM can measure forces of the subject in static and dynamic conditions like Posture (load symmetry and deviation of the centre of pressure), Squat Jump and Counter-Movement Jump (strength, height, and rate of force development).
One system for multiple purposes

One system for multiple purposes

In addition to measuring, PODIUM provides a biofeedback system through which the person can monitor the balance of his body like being in front of a mirror with augmented reality. This tool gives instructions on the correct posture or movement, becoming a powerful self-training system.
Advanced technology

Advanced technology

PODIUM is made by two high speed cameras and 2 triaxial force platforms. The three components of forces, vertical, antero-posterior, and lateral, can be viewed simultaneously. Optional tools such as additional video cameras and electromyography (EMG) system are also available.
Ease of use
Static and dynamic measurements
One system for multiple purposes
Advanced technology
